- Shenzhen Qifan Communication Equipment Co., Ltd. was founded in 2009. We mainly focus on Antenna Researching ,Signal Electrical Production,Household Electric Appliances. We have awarded ISO9001 certification. What’s more, our products are earning positive reputation of market and have been widely used in China, Europe and the United States.
- wideband：698-2700MHz wide band frequency range, work with ALL Carriers GSM,3G,4G LTE including AT&T, Version, Sprint and many more.
- High gain: 2x12dbi: this directional antenna can improve the signal performance of 3g-4g-lte, more stable
- [tip]: This is an outdoor antenna, which needs to be used together with router and or signal amplifier.
- Superior Construction, multi-element design is built with superior construction to withstand tough outdoor weather conditions, ,waterproof,striking resistant,anti-corrosion.

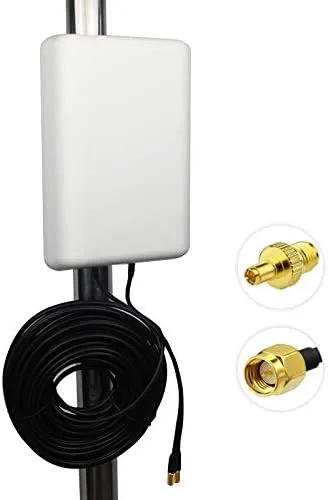

- include 2pcs RG58 50OHM 49.2ft SMA TS-9 cable
- support 4G/LTE cellular networks such as Verizon, AT&T, Sprint, T-Mobile, Telus, Bell Canada, Rogers, DigiCel and more
Frequency Range :700-960/1700-2700MHz .
Polarization: ±45° .
Bandwidth: 260/1000MHz .
Gain: 2x12dBi .
Horizontal Half-power Beam Width :65° .
Vertical Half-power Beam Width: 15° .
VSWR :2.0 .
Maximum input power :50Ω .
Lightning protection :DC Ground .
Cable Length :15 meters .
Input connector type :2 x SMA-Male and 2xTS-9 connector .
Dimensions :285*180*62mm .
Antenna weight :1.8kg.
Radome material :ABS .
Radome color: White .
Operating temperature :-40℃～65℃ .
Rated Wind Velocit: 60m/s .
Waterproof Standard: IP67 .
Mounting way:pole-holding .
Mounting hardware :￠35mm～￠50mm .
